Spotlight Figura Z/05 ZS 500-650W zoom 14-33° DEMO

330019

14-33 ° zoom profile spot, 500 / 650W.


The lamps are made in a robust black lacquered aluminum and steel housing, with easy access to bulb replacement. The lamp has stepless zoom from 14 ° to 33 ° and is delivered as standard with 4 pcs. knives (framing shutters) and 2m access cable. In addition, a gobo holder can be mounted in the lamp.

Description

  • PRODUCT CODE
  • FI 05 ZS
  • TYPE
  • Family: Profile
  • Line: Conventional line
  • SOURCE
  • Halogen
  • CONNECTORS
  • Cable without plug
  • LAMP HOLDER
  • GY9.5
  • VOLTAGE
  • 220-240V, 50-60Hz

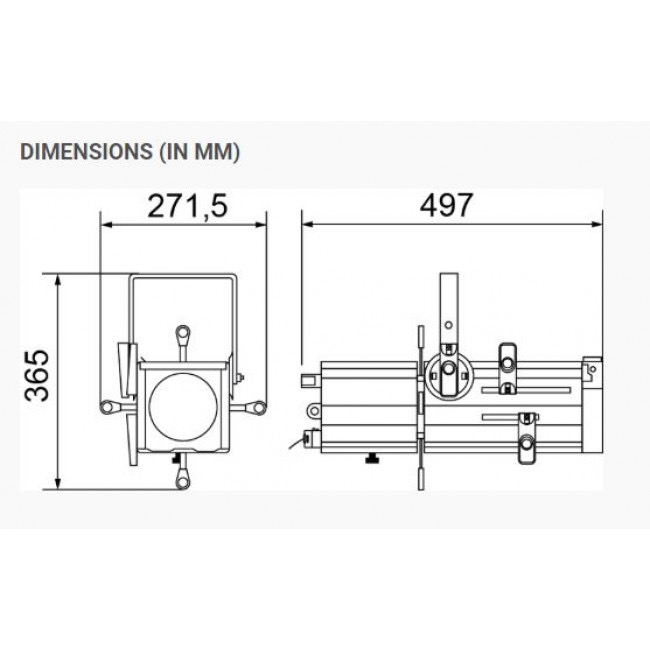

  • DIMENSIONS
  • Product
  • Weight: 4.8 Kg
  • Packaging
  • Dimensions: 275mm x 275mm x 560mm
  • Volume: 0.042 m3
  • Pack weight: 5.7 Kg

TECHNICAL FEATURES

  • Aluminum housing for high heat dissipation by natural ventilation
  • Filter frame lockable top cover
  • Yoke with clutch-locking system
  • Adjustable yoke for fixture balancing
  • Auto power-off by safety microswitch for maintenance and access into the lantern
  • Easy access to the lamphouse for fast maintenance
  • Adjustable lampholder position for proper LCL settings
  • 99,99% polished and treated aluminum reflector
  • PO version on request, with 2-way pole operation for tilt and pan
  • ARC version on request, with 3-way DMX control of tilt, pan and iris diaphragm

Information

Product warranty 48 timer
Product age 0-3
Product Application Light Profile and Spots
NS Brands Spotlight Figura
